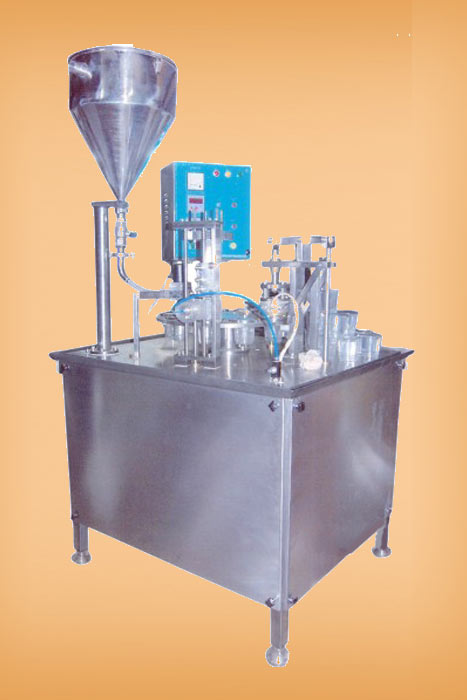

Automatic Cup Filling Sealing Machine

Model AT - 1HD
• Automatic Cup and Glass Liquid Filling Sealing Machine
• Fully Mechanical Working
• Easy to operate
• Easy to maintain

Technical Specification
• Machine Capacity
  - Mineral Water 200 ml 800-850 Cups/Hr
  - Curd/ Lassi 200 ml 700-750 Cups/Hr
  - Curd/ Lassi200 ml 500-600 Cups/Hr
• No. Of Stations : 5
• Cup Size : 50 to 500 ml
• Hopper Capacity : 21 Ltr
• Power Supply : 3 Phase 1 HP x1440
• Heater : 16 mm x L90mm
• Temperatiure Controller : 0 to 400 C (230V x 500w)
• Filling Timer 1 Nos.
• Product Contact Paers : SS 304
• Machine Dimension LXWXH / 36" x 30" x 30"
• Worm reduction gear box • Vacuum : 0.25 • Weight 400KG
